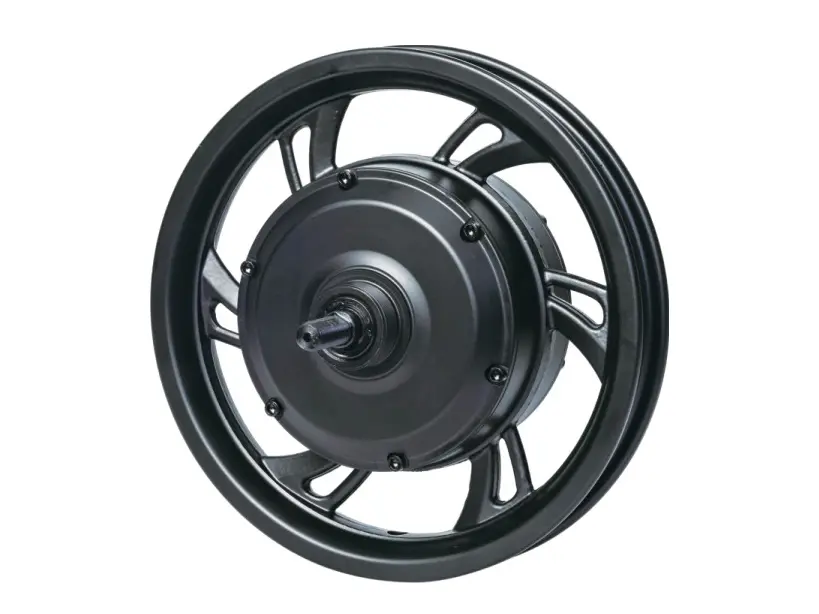

Rear Hub Motor For eCity, eFoldable Bikes, eScooters
SF12''
SF05H 14''
SF135/14''
SF120-135/14''
SF135/16''
SF08 140/20''
SF92R 140/24''26''
SF23-170/20''
SF205H-45H
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 12’’
Dropout - 120mm to 140mm
For eCity, eFoldable Bikes, eScooters.
|
LIGHT 3.2kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 14’’
Dropout - 120mm to 140mm
For eCity, eTour, eFoldable Bikes, eScooters
|
LIGHT 3.3kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 14’’
Dropout - 120mm to 140mm
For eCity, eFoldable Bikes, eScooters.
|
LIGHT 3.3kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 14’’
Dropout - 135mm
For eCity, eTour, eFoldable Bikes, eMTB, eMotorcycle.
|
LIGHT 4.7kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 14’’ to 16’’
Dropout - 120mm to 140mm
For eCity, eTour, eMTB, eFoldable Bikes
|
LIGHT 3.8kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 20’’
Dropout - 137mm
For eCity, eTour, eMTB, eFoldable Bikes
|
LIGHT Depends |
EFFICIENCY >80% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 24’’ to 26’’
Dropout - 140mm
For eCity, eMTB, eTour Bikes
|
LIGHT 2.8kg |
EFFICIENCY >80% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 350W
Wheel - 24’’ to 26’’
Dropout - 140mm
For eCity, eMTB, eTour Bikes
|
LIGHT 2.8kg |
EFFICIENCY >80% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 1000W
Wheel - 20’’
Dropout - 190mm
For eFat Tyre, eDirt Bikes
|
WEIGHT Depends |
EFFICIENCY >82% |
IP 65 |
|
|
|
|
|
|
|
|
|
|
Model |
SF12'' |
SF05H 14'' |
SF135/14'' |
SF120-135/14'' |
SF135/16'' |
SF08 140/20'' |
SF92R140/24''26'' |
SF23-170/20'' |
SF23-190/20'' |
Position |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Construction |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Rated Voltage |
24/36/48V |
24/36/48V |
24/36/48V |
24/36/48V/60 |
24/36/48V |
24/36/48V |
24/36/48V |
24/36/48V |
24/36/48V |
Rated Output |
180-350W |
180-350W |
180-350W |
180-350W |
180-350W |
180-350W |
250-350W |
350-1000W |
350-1000W |
Wheel Size |
12'' |
14'' |
14'' |
14'' |
14''-16'' |
20'' |
24-26'' |
20'' |
20'' |
Rated Speed |
25-30km/h |
25-30km/h |
25-30km/h |
35km/h |
25km/h |
30km/h |
35km/h |
35km/h |
35km/h |
Temperature |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
Rated Efficiency |
≥82% |
≥82% |
≥82% |
≥82% |
≥82% |
≥80% |
≥80% |
≥82% |
≥82% |
Reduction Ratio |
1:4.4 |
1:4.4 |
1:4.4 |
1:5.8 |
1:4.4 |
1:4.33 |
1:4.4 |
1:4.33 |
1:5.8 |
Weight |
3.2kg |
3.3kg |
3.3kg |
4.7kg |
3.8kg |
* |
2.8kg |
* |
* |
Open Size |
120-140mm |
120-140mm |
120-140mm |
135mm |
120-140mm |
137mm |
140mm |
170mm |
190mm |
Drive and Freewheel |
1s/7s |
1s/7s |
1s/7s |
1s |
1s/7s |
1s/7s |
1s/7s |
* |
* |
Cable Location |
Shaft Center Right |
Shaft Center Right |
Shaft Center Right |
Shaft Side Left |
Shaft Center Right |
Shaft Center Right |
Shaft Center Right |
Shaft Side Left |
Shaft Side Left |
Hall Sensor |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Integrate Speed Sensor |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Surface |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Balck/Silver/Shinning |
Brake Type |
V/Expansile |
V/Disc |
V/Disc |
V/Disc |
V/Disc |
V/Disc |
V/Disc |
V/Disc |
V/Disc |
Noise |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
Waterproof Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |

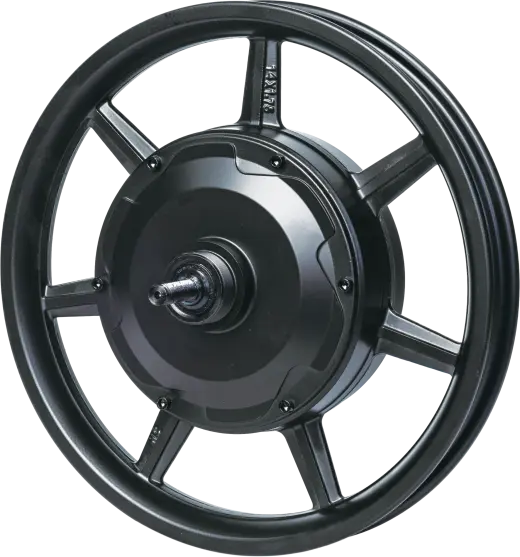

The Die-Casted Wheel with Hub Motor Series are designed to revolutionize the way you ride, this cutting-edge product combines the power of a hub motor with the strength and durability of a die-casted wheel, offering an unparalleled riding experience.
With power options ranging from 180w to 1000w, our Die-Casted Wheel with Hub Motor is engineered to meet a variety of needs, whether you’re cruising through the city on an eCity Bike, tackling rugged terrain on an eMTB, or exploring off-road trails on an eDirt Bike. The versatility of this product makes it suitable for a wide range of electric bikes, including eScooters, eTour Bikes, and eFat Tyre Bikes.
Available in sizes from 12‘’to 26‘’, our Die-Casted Wheel with Hub Motor is designed to fit almost all types of bikes, ensuring compatibility and ease of installation. The Die-Casted wheel not only enhances the aesthetic appeal of your electric bike but also provides superior strength and durability, making it ideal for various riding conditions.
Crafted from high-quality alloy aluminum material, our Die-Casted Wheel with Hub Motor offers exceptional durability and reliability, ensuring a long-lasting performance that you can rely on. The combination of the Die-Casted wheel and hub motor delivers a seamless and efficient riding experience, allowing you to enjoy the benefits of electric assistance with confidence and peace of mind.
With over 15 years of experience in producing e-bike motors, we have honed our expertise to deliver a motor that meets the highest standards of quality and performance. Our commitment to innovation and excellence is reflected in every aspect of our hub motor, making it a reliable and trusted choice for e-bike enthusiasts.
Whether you‘re a daily commuter, an avid cyclist, or an adventure enthusiast, our Die-Casted Wheel with Hub Motor is designed to elevate your riding experience. Experience the perfect blend of power, performance, and durability with our innovative solution for electric bikes. Upgrade your ride today and discover the endless possibilities with our Wheels with Hub Motor.
