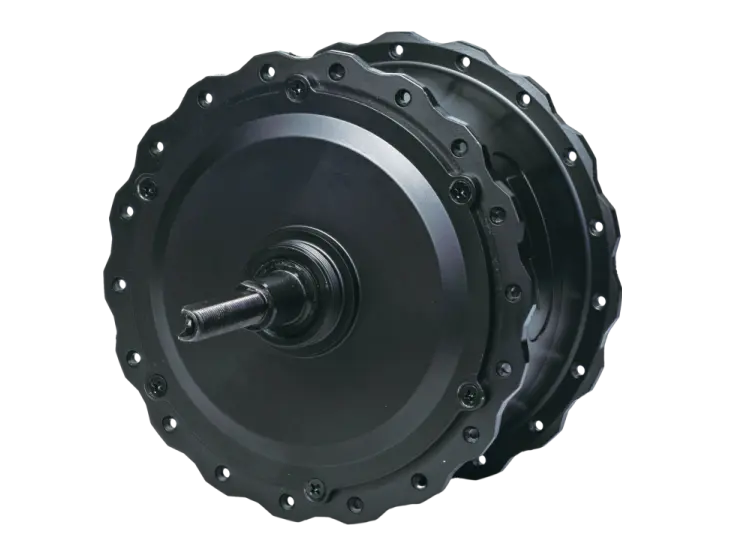

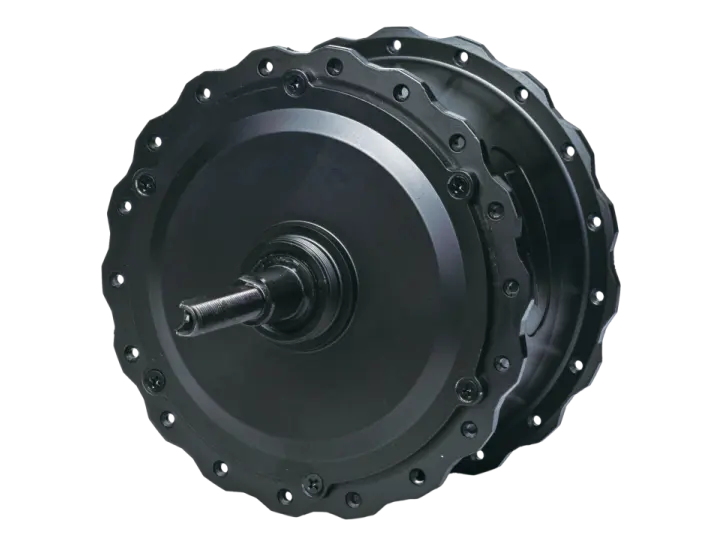

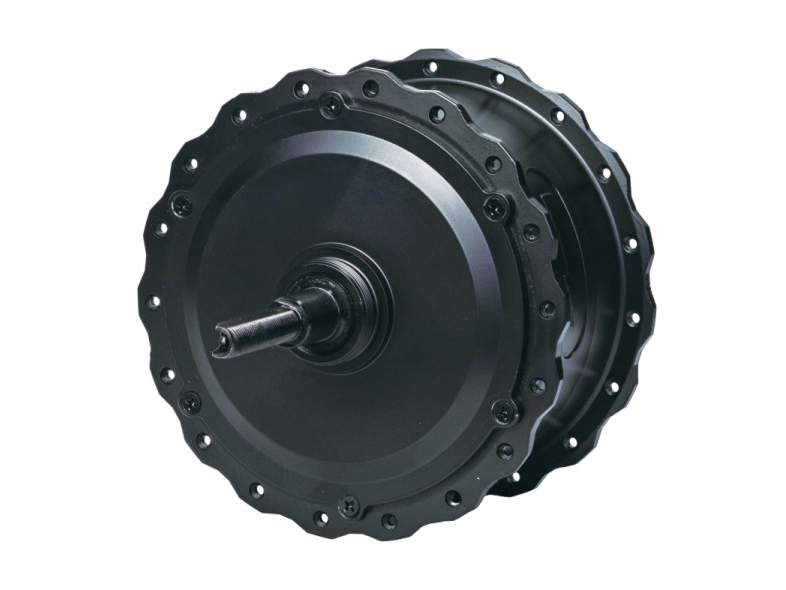

Rear Hub Motor For eFat Tyre Bikes

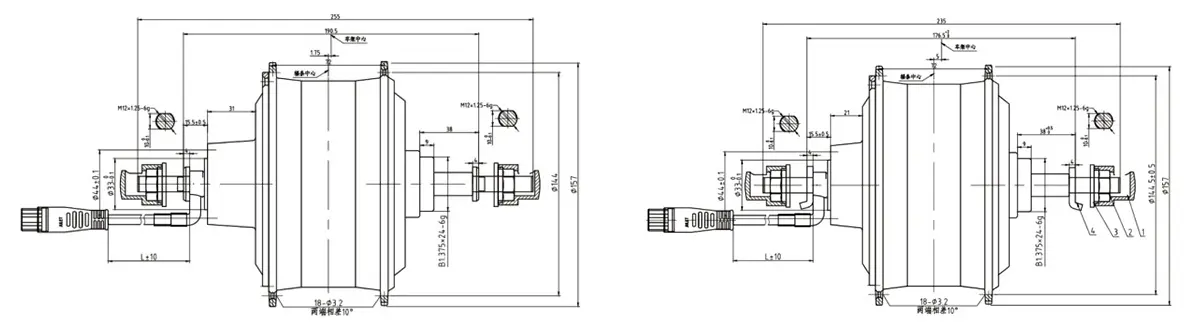

SF110-FatR175/190
SF110-FatC175
SF110-FatC190
SF110- FatR190X
SF110-FatR175X
SF92- FatR170
SF06
36V / 48V
Rated Power - 750W
Max. Torque - 85N·m
Dropout - 175mm/190mm
|
LIGHT 4.15kg |
EFFICIENCY >78% |
IP 54 |
36V / 48V
Rated Power - 750W
Max. Torque - 85N·m
Dropout - 175mmmm
For eFat Tyre
|
LIGHT 4.15kg |
EFFICIENCY >78% |
IP 54 |
36V / 48V
Rated Power - 750W
Max. Torque - 85N·m
Dropout - 190mm
For eFat Tyre
|
LIGHT 4.15kg |
EFFICIENCY >78% |
IP 54 |
36V / 48V
Rated Power - 1000W
Max. Torque - *
Dropout - 190mm
For eFat Tyre
|
LIGHT 3.0kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Rated Power - 1000W
Max. Torque - *
Dropout - 175mm
For eFat Tyre
|
LIGHT 3.0kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Rated Power - 250W
Max. Torque - *
Dropout - 170mm
For eFat Tyre
|
LIGHT 3.2kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Rated Power - 350W
Max. Torque - *
Dropout - 158mm
For eFat Tyre
|
LIGHT 2.8kg |
EFFICIENCY >82% |
IP 65 |
|
|
|
|
|
|
|
|
Model |
SF110-FatR175/190 |
SF110-FatC175 |
SF110-FatC190 |
SF110-FatR190X |
SF110-FatR175X |
SF92-FatR170 |
SF06 |
Position |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Construction |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Gear |
Rated Voltage |
36/48V |
36/48V |
36/48V |
24/36/48V |
24/36/48V |
24/36/48V |
24/36/48V |
Rated Output |
250-750W |
250-750W |
250-750W |
350-1000W |
350-1000W |
180-250W |
180-350W |
Max Torque |
85N·m |
85N·m |
85N·m |
* |
* |
* |
* |
Wheel Size |
20'' - 28'' |
20'' - 28'' |
20'' - 28'' |
20'' - 28'' |
20'' - 28'' |
16'' - 28'' |
16'' - 28'' |
Rated Speed |
25-45km/h |
25-45km/h |
25-45km/h |
35km/h |
35km/h |
25-30km/h |
25km/h |
Temperature |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
-20-45°C |
Rated Efficiency |
≥78% |
≥78% |
≥78% |
≥82% |
≥82% |
≥82% |
≥82% |
Reduction Ratio |
1:5 |
1:5 |
1:5 |
1:4.4 |
1:5.8 |
1:4.33 |
1:6.3 |
Weight |
4.15kg |
4.15kg |
4.15kg |
3kg |
3kg |
3.2kg |
2.8kg |
Open Size |
175/190mm |
175mm |
190mm |
190mm |
175mm |
170mm |
158mm |
Drive and Freewheel |
6s-7s |
8s-9s |
8s-9s |
6s-7s |
6s-7s |
6s-7s |
6s-7s |
Cable Location |
Shaft side Left |
Shaft side Left |
Shaft side Left |
Shaft side Left |
Shaft side Left |
Shaft Center Right |
Shaft Center Right |
Hall Sensor |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Integrate Speed Sensor |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Surface |
Balck/Silver |
Balck |
Balck |
Balck/Silver |
Balck |
Balck/Silver |
Balck/Silver/Golden |
Brake Type |
Disk |
Disk |
Disk |
V/Disk |
V/Disk |
V/Disk |
V/Disk |
Noise |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
<55 db |
Waterproof Grade |
IP54 |
IP54 |
IP54 |
IP65 |
IP65 |
IP65 |
IP65 |
Salt Spary Standard(h) |
24/96 |
24/96 |
24/96 |
24/96 |
24/96 |
24/96 |
24/96 |
The high-performance hub motor for electric fat tyre bikes. With power options ranging from 180w to 1000w, our hub motor is designed to provide exceptional performance and reliability for all types of riders.
One of the key features of our hub motor is its versatility. With a dropout range from 158mm to 190mm, it is compatible with almost all types of bikes available in the market, making it a convenient and practical choice for e-bike enthusiasts. Whether you have a standard bike or a fat tyre bike, our hub motor is engineered to fit seamlessly and enhance your riding experience.
In addition to its compatibility, our hub motor boasts high efficiency, with ratings of over 78% and 82%. This means that you can enjoy a powerful and smooth ride while maximizing the use of your battery. Whether you’re commuting to work or tackling off-road trails, our hub motor delivers the performance you need with energy efficiency in mind.
Furthermore, our hub motor is designed to withstand various environmental conditions. With IP54 and IP65 ratings, it is protected against dust and water, ensuring durability and longevity even in challenging outdoor settings. This makes it an ideal choice for riders who want to explore different terrains without compromising on the performance of their e-bikes.
With over 15 years of experience in producing e-bike motors, we have honed our expertise to deliver a hub motor that meets the highest standards of quality and performance. Our commitment to innovation and excellence is reflected in every aspect of our hub motor, making it a reliable and trusted choice for e-bike enthusiasts.
Experience the difference with our hub motor for electric fat tyre bikes and elevate your riding experience to new heights. Whether you’re a casual rider or a dedicated enthusiast, our hub motor is designed to exceed your expectations and deliver unparalleled performance on every journey.
