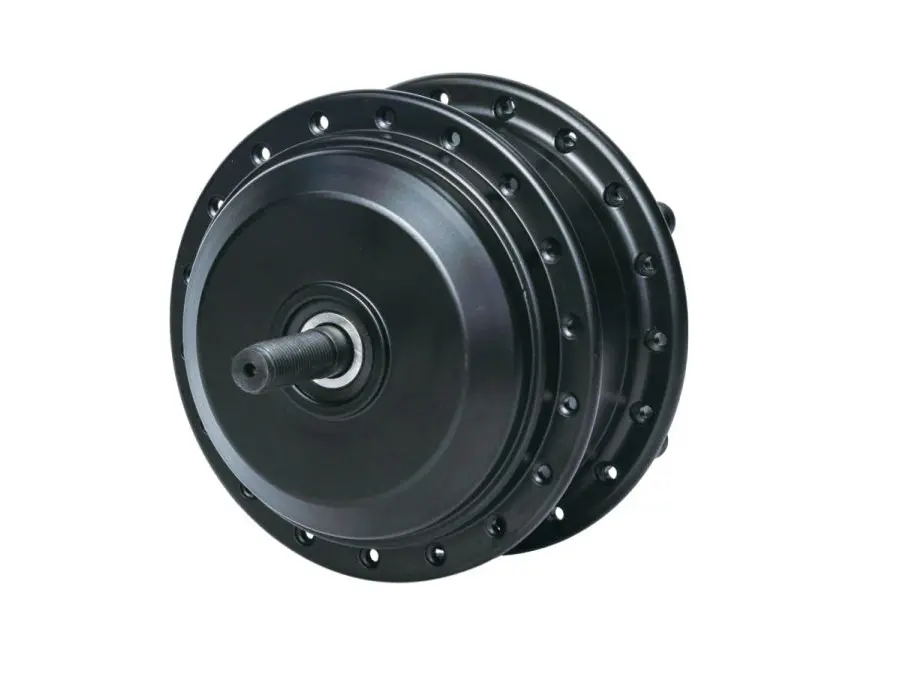

Rear Hub Motor/Front Hub Motor

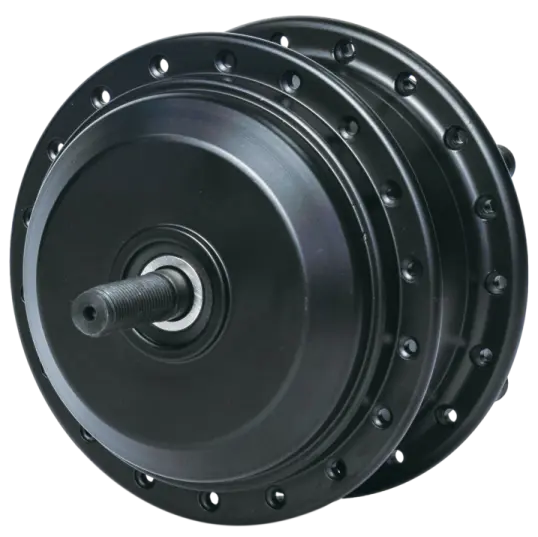

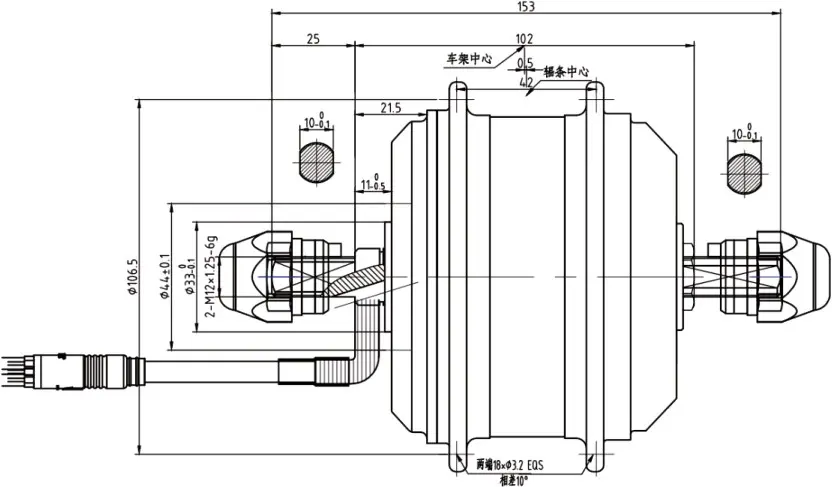

SF75F
SF07
24V / 36V / 48V
Max. Rated Power - 250W
Max. Torque - 45N·m
Dropout - 100mm
For eCity, eTour, eFoldable Bikes
|
LIGHT 2.2kg |
EFFICIENCY >82% |
IP 65 |
24V / 36V / 48V
Max. Rated Power - 250W
Max. Torque - 30N·m
Dropout - 100mm
For eCity, eTour, eFoldable Bikes
|
LIGHT 2.5kg |
EFFICIENCY >78% |
IP 54 |
|
|
|
|
Model |
SF75F |
SF07 |
SF110-FatF135 |
Position |
Front |
Front |
Front |
Construction |
Gear |
Gear |
Gear |
Rated Voltage |
24/36/48V |
24/36/48V |
36/48V |
Rated Output |
180-250W |
200-250W |
250-750W |
Max Torque |
45N·M |
30N·M |
85N·M |
Wheel Size |
16'' - 28'' |
16'' - 28'' |
20'' - 28'' |
Rated Speed |
25-30km/h |
25km/h |
25-40km/h |
Magnet Poles (2P) |
10 |
10 |
10 |
Temperature |
-20-45°C |
-20-45°C |
-20-45°C |
Rated Efficiency |
≥82% |
≥78% |
≥78% |
Reduction Ratio |
1:6.28 |
1:4.4 |
1:5 |
Weight |
2.2kg |
2.5kg |
4.15kg |
Open Size |
100mm |
100mm |
135mm |
Cable Location |
Shaft Side Left |
Shaft Center Right |
Shaft Center Right |
Hall Sensor |
Optional |
Optional |
Optional |
Integrate Speed Sensor |
Optional |
Optional |
Optional |
Surface |
Shinning/ Balck/ Silver |
Balck/ Silver |
Balck |
Brake Type |
V/Disk |
V/Disk |
Disk |
Noise |
<55 db |
<55 db |
<55 db |
Waterproof Grade |
IP65 |
IP54 |
IP54 |

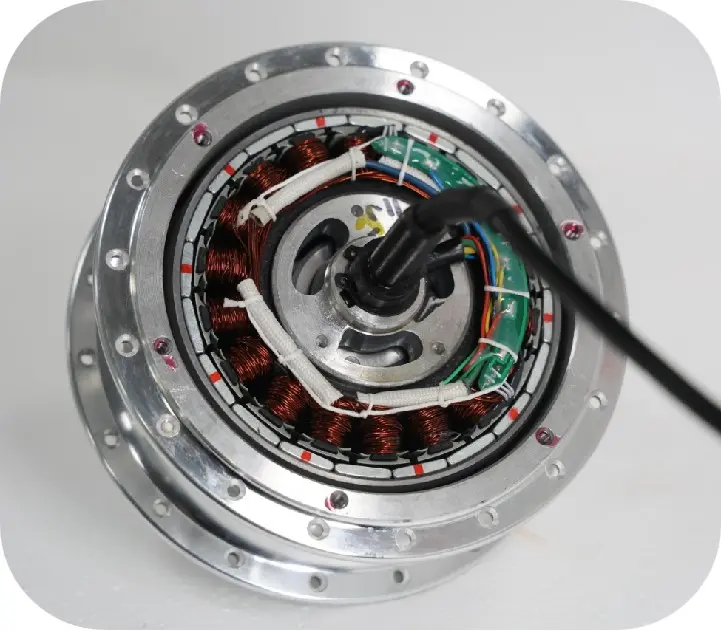

Designed for e-bikes such as the eCity, eTour and eFoldable types.
Whether you’re commuting to get off work or exploring the city, our front hub motors deliver the power and performance you need for a smooth and efficient ride.
Two models and variety of power options from 180w to 250w
Our front hub motors provide the perfect balance of speed and efficiency, making them ideal for city commuting. Its innovative design ensures smooth and safer riding, especially on wet roads, providing enhanced traction and stability for a worry-free ride.
High-quality and affordable price.
As a leading motor manufacturer for over 15 years, we use our expertise to manufacture hub motors that meet the highest quality and performance standards. Our commitment to innovation and excellence is evident in every aspect of this product, from durable construction to seamless integration with e-bikes.
Whether you’re cruising busy city streets or cruising along scenic bike trails, our front hub motors deliver the power and reliability you can count on. It’s the perfect choice for riders who want the best in e-bike technology, delivering a seamless and enjoyable ride every time.
Experience the difference our front hub motor makes in your daily commute or casual riding. With its advanced features and proven performance, it’s the ultimate upgrade for e-bike enthusiasts looking for a superior riding experience. Join the ranks of satisfied riders who have switched to our front hub motors and discover new levels of convenience, efficiency and enjoyment on every ride.
