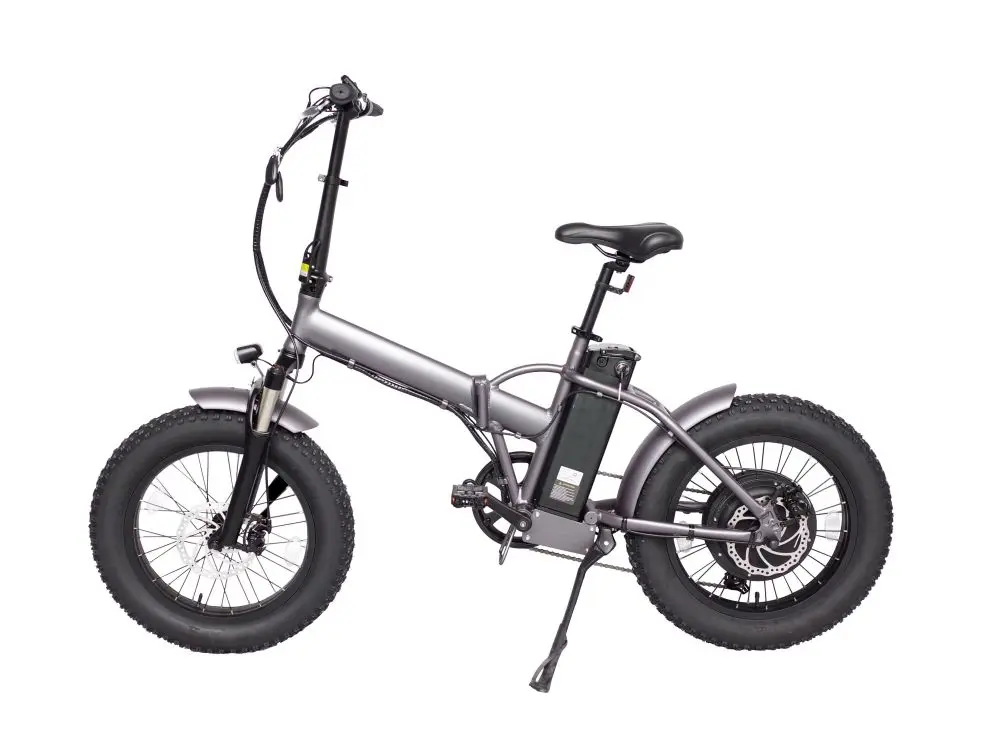

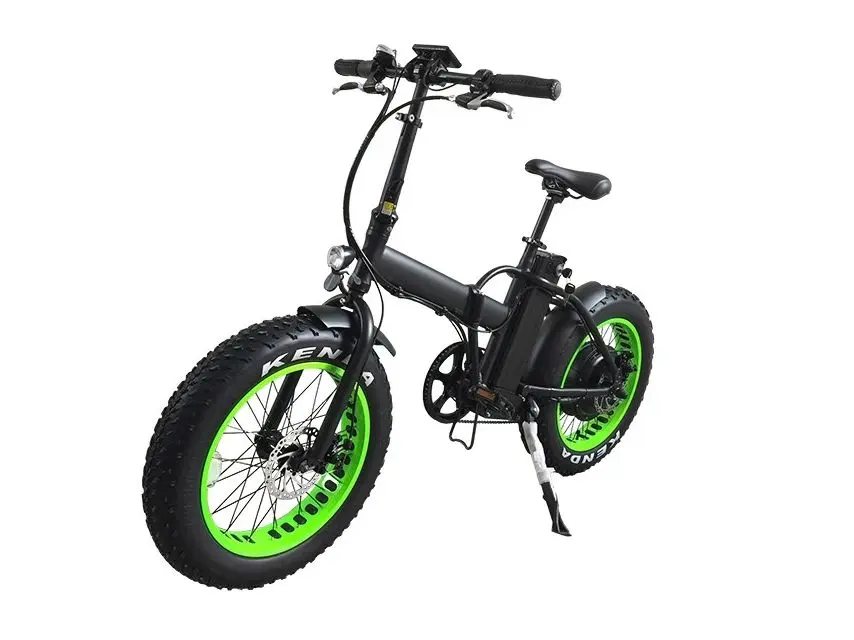

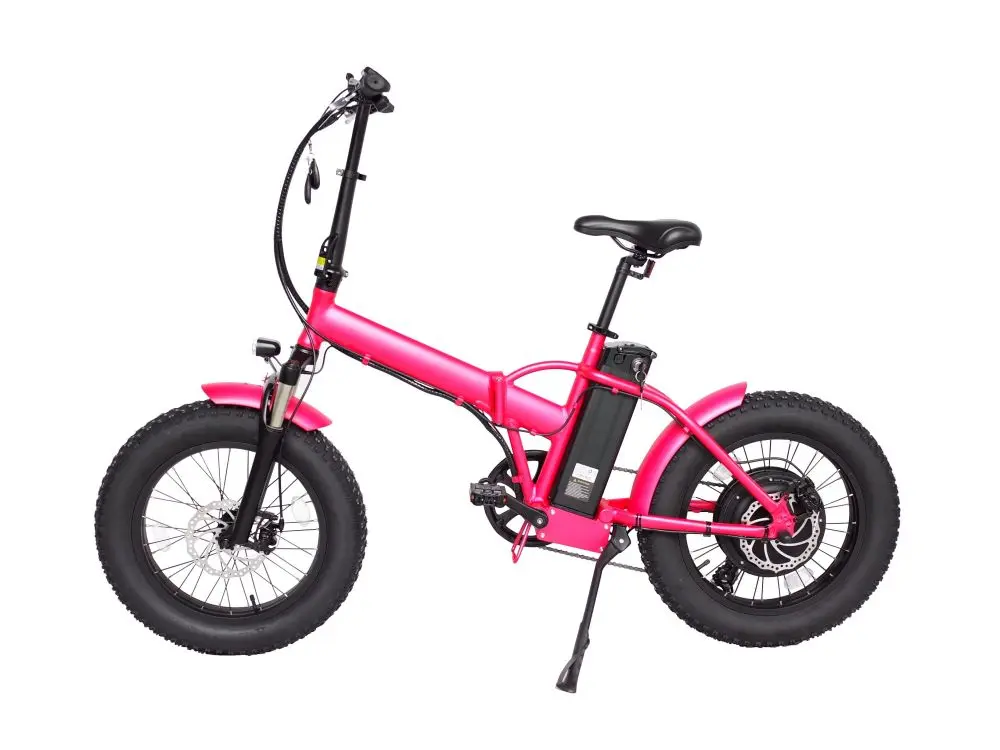

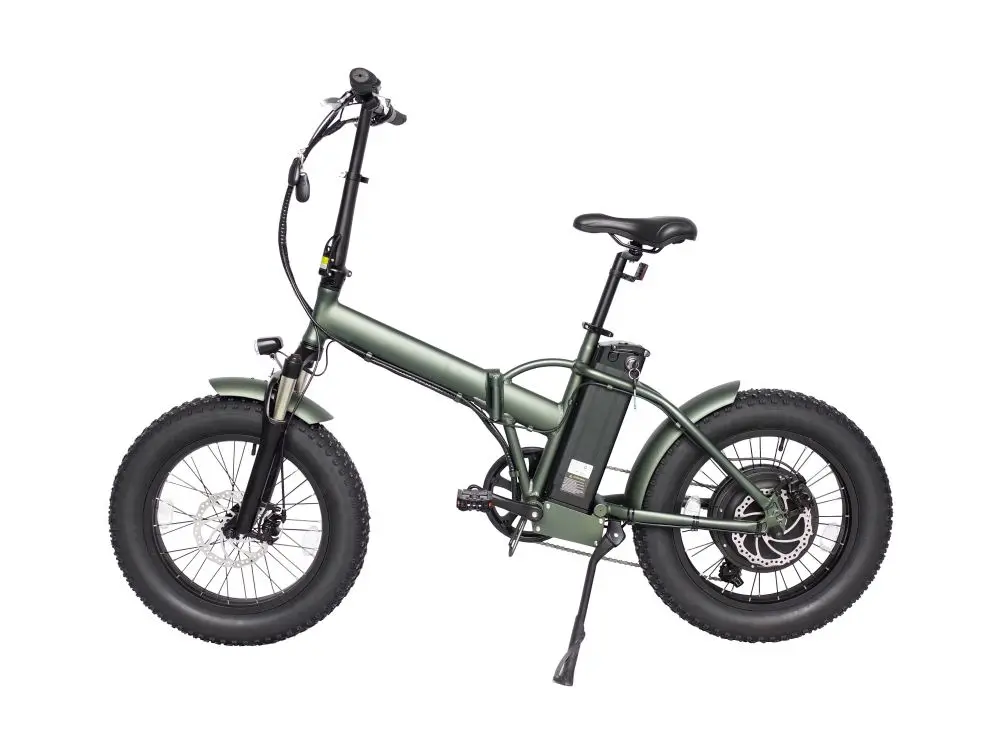

YD-002 Electric Bicycle High Capacity Battery for Daily Commute  Grocery Run Design for Urban Commuters Smart Display LED Headligh
E-Bike

YD-002 Electric Bicycle High Capacity Battery for Daily Commute Grocery Run Design for Urban Commuters Smart Display LED Headligh

20inch fat tyre, 36v/48v, 250w-1000w,  Electric Bicycle

    Product Description

    Long Battery Life and Efficient Energy Replenishment: Say Goodbye to Range Anxiety. The YD-002 is equipped with a 21700 automotive-grade power cell battery pack, adopting a fully automatic grouping process and co-directional aluminum wire welding technology. Its energy density is 25% higher than that of traditional lithium batteries. Combined with optimized motor efficiency, it can achieve a full-charge range of up to 105km under flat road conditions at 25-30℃. It is also equipped with an intelligent kinetic energy recovery system, which can recover 10% of energy to recharge the battery during downhill, coasting, and braking, further extending the actual riding range.

    The vehicle builds a triple safety barrier from structure to system: The frame is made of one-piece high-carbon steel, which shows no rust after 72-hour salt spray testing, and its impact resistance is 40% higher than that of ordinary frames. Equipped with 14-inch explosion-proof tubeless tires, it can still maintain stable grip on bumpy roads or during emergency braking. The battery has excellent waterproof and dustproof performance, so there is no need to worry about short-circuit risks when riding in rainy days or passing through waterlogged sections.

    The appearance adopts a minimalist Chinese-style trendy design, available in four color options: ink black, elegant gray, dark green, and rose red. The frame lines are smooth and take aerodynamics into account. The hidden battery compartment design makes the body proportion more coordinated while preventing battery collision. The LED headlight adopts lens condensation technology, with an irradiation distance of 20 meters, and its penetration in rainy days is 30% higher than that of ordinary headlights, balancing appearance and practicality.



    Configurations

    Economy

    Standard

    Comfortable

    Sports

    Basic specification

    Frame

    Aluminium alloy

    Tyre Size

    20×4.0 Slide-Proof Tyres

    1:1 Intelligent Pedal Assistant

    6 magnets

    12 magnets

    Charging Time

    4-5H

    6-8H

    7-9H

    Speed

    30-35km/h (25km/h limited)

    35-45km/h

    Range with 1:1 PAS mode

    50-60km

    60-70km

    Loading Capacity

    100kgs

    Color

    Matt black, Matt metallicred, Matt blue, Matt grey, Shining white, Shining orange

    Packing

    101*50*70CM, 70PCS/20Ft, 176PCS/40HQ

    Electric configuration

    Brushless Hub Motor

    250W

    500W

    Gearless 1000W

    Lithium Battery

    36V 8.8AH Optional 36V 21AH

    48V 10.4AH Optional 48V 17.5AH

    48V 11.6AH Optional 48V 17.5AH

    Controller

    Intelligent Brushless

    Smart Charger

    AC 100-240V,2A

    Display

    LCD

    Mechanical configuration

    Suspension front fork

    MOZO Optional

    Disc brake

    TEKTRO F/R

    Brake lever

    Wuxing

    TEKTRO with bell

    Derailleur

    Shimano 7 speed

    Handle Bar&Stem

    Promax

    Seat Post

    Hongpin

    Zoom

    Chainwheel

    42 teeths

    Seat

    Soft

    Grips

    JUSTEK

    VELO

    VELO Optional

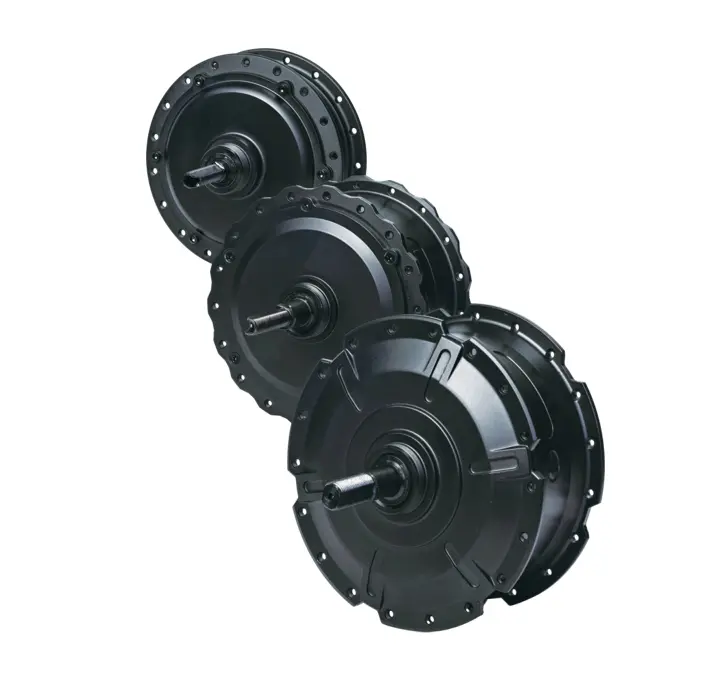

    Wide range of motors for selection to adapt different use requirements

    36V / 250W
    Economy / Commuting / Urban roads

    48V / 500W
    Standard / Commuting & Fun / Light off-road

    48V / 750W
    Sport / Cross Country / Off-Road

    48V / 1000W
    Wild / Climbing / Off-Road

    Wide range of motors for selection to adapt different use requirementskaz
    YD-002 (8)ida

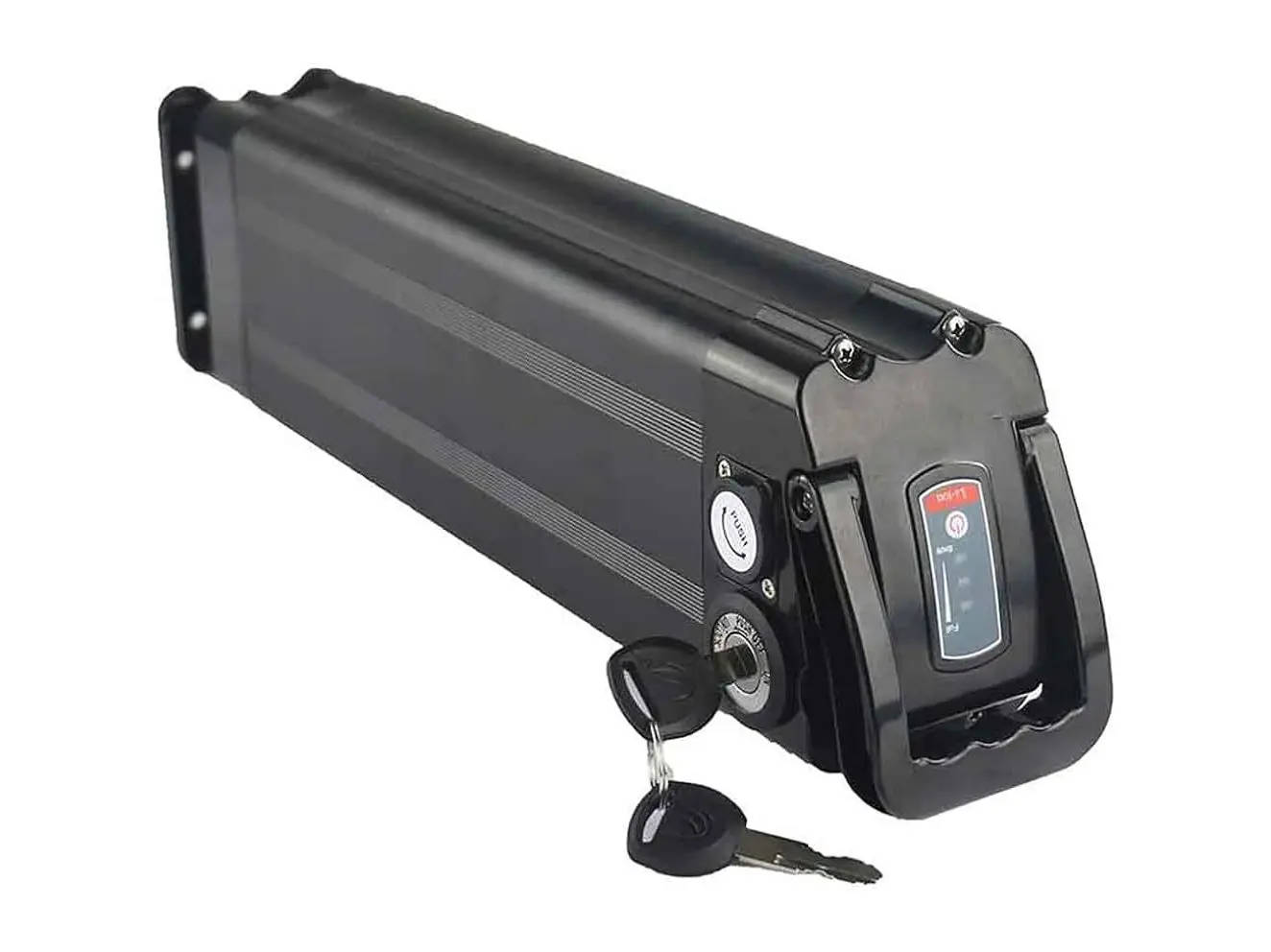

    Portable battery pack

    Easy to install and remove.

    Energy Indicator

    Power Switch

    Anti-Sheft Lock

    Wide range of battery packs for selection.

    36V8.8AH 10S4P - 2200mah cells

    36V10.4AH 10S4P - Samsung 2600mah cells

    48V11.6AH 13S4P - Samsung 2900mah cells

    48V17.5AH 13S5P - Samsung 3500mah cells

    48V21AH 13S6P - Samsung 3500mah cells

    INFORMATION YOU CAN READ

    Battery Level

    Assistance Level

    Push-assistance

    Headlight Indication

    Total Distance

    Single Trip Distance

    Single Trip Duration

    Various Parameters

    Settings USB Port(Optional)

    Error Code Indication

    Voltage

    24V/36/48V

    Communication

    UART

    PAS Level

    0-3/0-5/0-9

    Holder

    ф22.2mm

    INFORMATION YOU CAN READpwa
